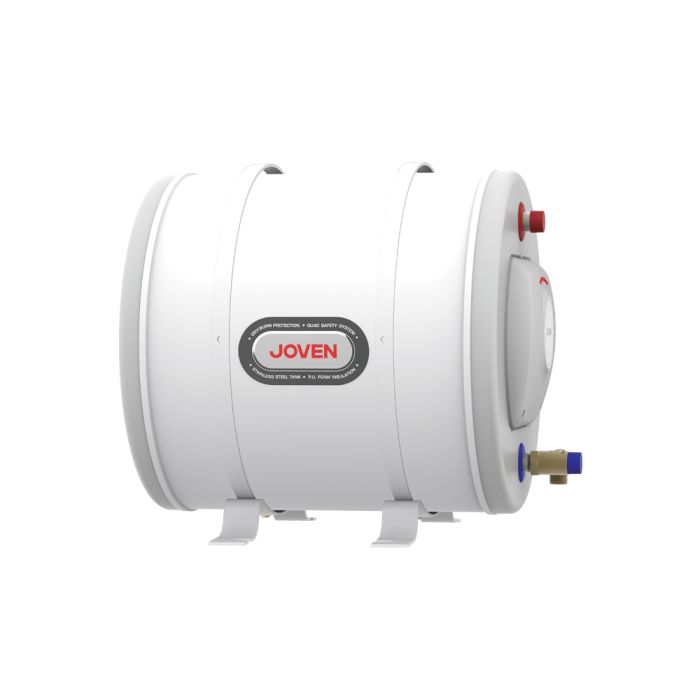

JSH25 Storage Water Heater

SKU

525602015

In stock

Innovative Features

Centralised Multi-point System with Enhanced Dry-Burn protection
For 1 Sink or 1 standard Shower
For Kitchen Sink - Domestic Low Usage
Horizontal Mounting Position
Capacity 25L ; 5.5 Imp. Gallons
Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
Hot water up to 70°C
High quality Incoloy Heating Element
Premium Grade Stainless Steel
High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
Antibacterial Heating Technology

Accessories

Universal Mounting Ring Bracket (Patent Pending)
Expansion Bolts

Safety Features

Enhanced Dry-Burn Protection
Thermostat with Thermal cut-off
Pressure Relief and Drain Valve

Find It At The Nearest Store

INNOVATIVE FEATURES

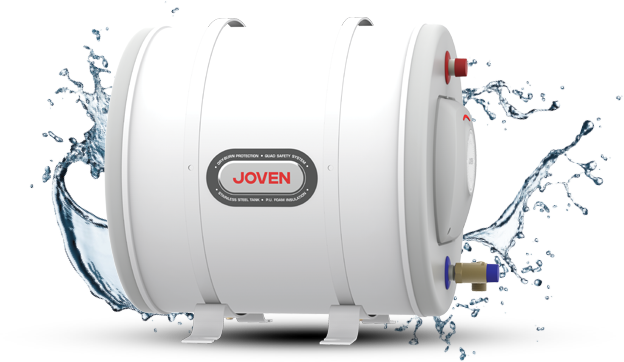

Your Reliable Hot water SolutionCentralised Multi-Point System For Your Entire Home.

With leading cutting edge and technical expertise manufactured according to certified standards, Joven Storage Water Heater is the preferred choice for a hotter water solution throughout your home or premise that delivers luxurious hot water whenever you need.

Provides For a Sink or Standing Shower JSH25

The capacity 25L or 5.5 Imp. Gallons at 70°C can provide up to 98.34L of hot water at 38°C according to inlet temperature of 27°C. Suitable for a sink or a standard shower with a standard sized showerhead.

Provides Hot Water for Domestic Kitchen Use

A 25L provides for light use in domestic kitchen for washing, degreasing, sanitising untensils, cookware or surfaces.

Long Lasting Heat

Get Longer Lasting Hot Water with Energy Saving knowing that the Storage Water Heater System has an Auto-Thermostat Cut-Out and efficient Insulation system that keeps the water hotter for longer, day or night anytime throughout the day.

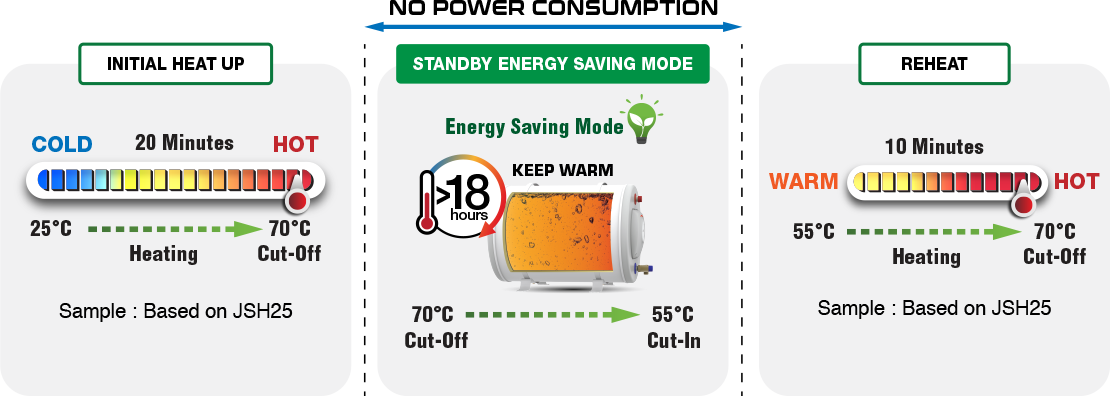

Save Energy with Joven Storage Water Heater with Stand-by Energy Saving Mode

Durable

Built from high quality materials that withstand rust and rupture ensure long-lasting life and stellar performance.

Premium Grade Stainless Steel
High Quality Incoloy Heating Element
Electro-Galvanised Steel Epoxy Coated Outer Tank
High Quality Engineering Plastic
Rust Free Materials

SAFETY FEATURES

Enhanced Dry Burn Protection

Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability in an event of a dry-burn.

Thermostat with Safety Cut-Off

Thermostatically controlled at 70°c and Safety Cut-Off at 95°C.

Pressure Relief & Drain Valve

The Pressure Relief & Drain Valve relieves excessive built-up of pressure from the water tank during heating process.
Made from good quality materials to ensure no rust or rupture with prolonged use.

ACCESSORIES

Easy Mounting With Universal Mounting Ring Bracket (Patent Pending)

An innovation by Joven, the Universal Mounting Ring Bracket enables easy and universal mounting of the storage heater in a horizontal position.

Instruction Manual

Local language included

Warranty Card

Local product warranty included

2 Units Universal Mounting Ring

Firm balance with mounting ring bracket

Expansion Bolts

4 units for safer mounting

TECHNICAL SPECIFICATION

Electrical Loading
1.5 – 3.0 kW ; 13 Amp – 20 Amp
Tank Capacity
25 Litres ( 5.5 Imp. Gallons )
Time Taken To Heat Max 70°C
20 Mins ( 1st Heat Up From Cold Water )
10 Mins ( Subsequent Heat Up )

Recommended Water Pressure
1 – 4 Bar

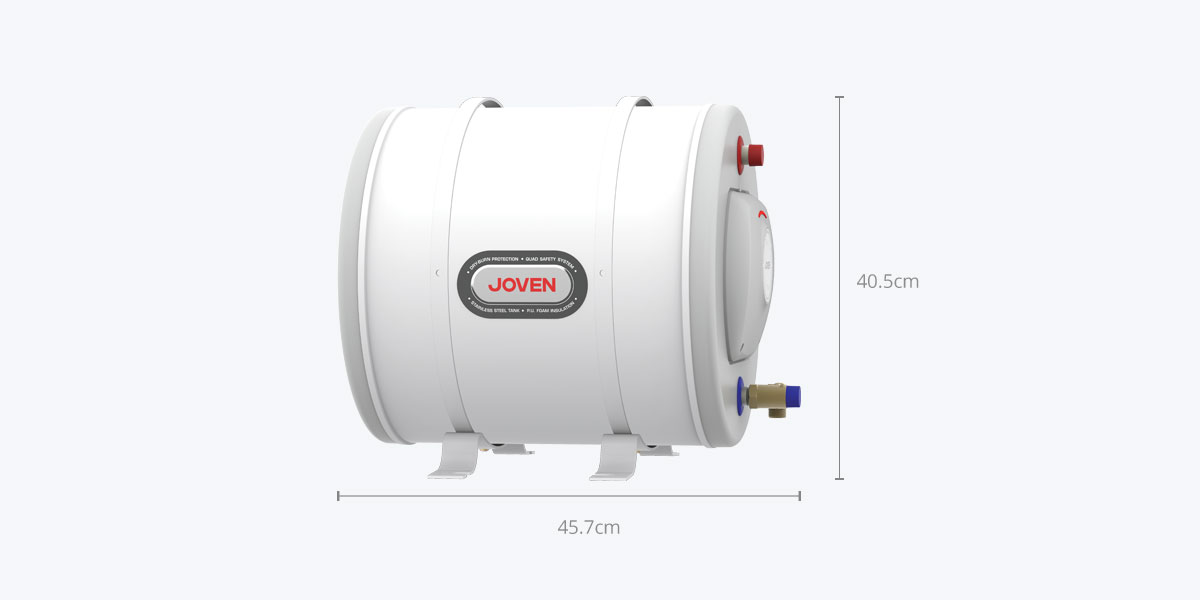

Dimensions (W * H * L)
381 x 405 x 457 mm
Approx. Weight
Empty : 12 kg ; Full : 37 kg
