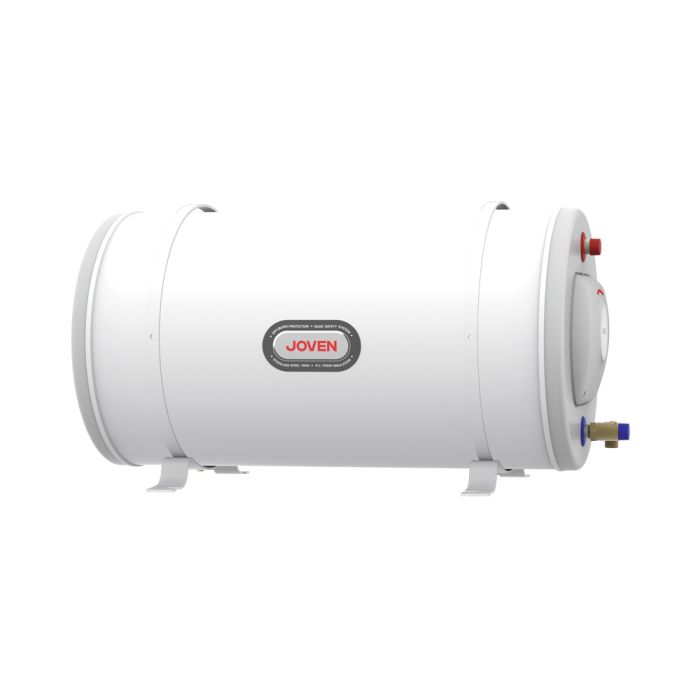

JSH56 Storage Water Heater
Innovative Features
- Centralised Multi-point System with Enhanced Dry-Burn protection
- For 2 standard Shower / 1 Rainshower 8” / 1 Rainshower 6” or 1 Wash Basin
- For Kitchen Sink - Commercial Low Usage
- Horizontal Mounting Position
- Capacity 56L ; 12.3 Imp. Gallons
- Power rating 1.5 kW – 3.0 kW ; 13 Amp – 20 Amp
- Hot water up to 70°C
- High quality Incoloy Heating Element
- Premium Grade Stainless Steel
- High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
- Antibacterial Heating Technology
Accessories
- Universal Mounting Ring Bracket (Patent Pending)
- Expansion Bolts
Safety Features
- Enhanced Dry-Burn Protection
- Thermostat with Thermal cut-off
- Pressure Relief and Drain Valve
INNOVATIVE FEATURES
Luxurious Hot Water delivered to your choice of shower or mixer tap system such as bathtub, jacuzzi, shower, Rainshower, sink-tap or kitchen just with the connection to the mixer tap.

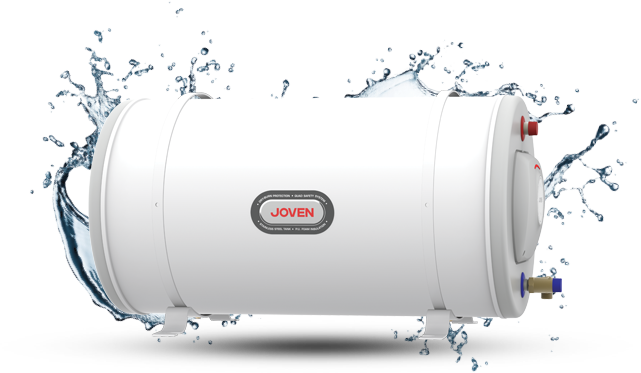

Your Reliable Hot water SolutionCentralised Multi-Point System For Your Entire Home.
With leading cutting edge and technical expertise manufactured according to certified standards, Joven Storage Water Heater is the preferred choice for a hotter water solution throughout your home or premise that delivers luxurious hot water whenever you need.
Provides For 2 Standing Showers or 1 Rainshower 8” JSH56
The capacity 56L or 12.3 Imp. Gallons at 70°C can provide up to 218.91L of warm water at 38°C according to inlet temperature of 27°C. Suitable for 2 Standing Showers or 1 Rainshower 8”.
Provides Hot Water for Commercial Kitchen Use
A 56L provides for light use in commercial kitchen for washing, degreasing, sanitising untensils, cookware or surfaces.
Long Lasting Heat
Get Longer Lasting Hot Water with Energy Saving knowing that the Storage Water Heater System has an Auto-Thermostat Cut-Out and efficient Insulation system that keeps the water hotter for longer, day or night anytime throughout the day.

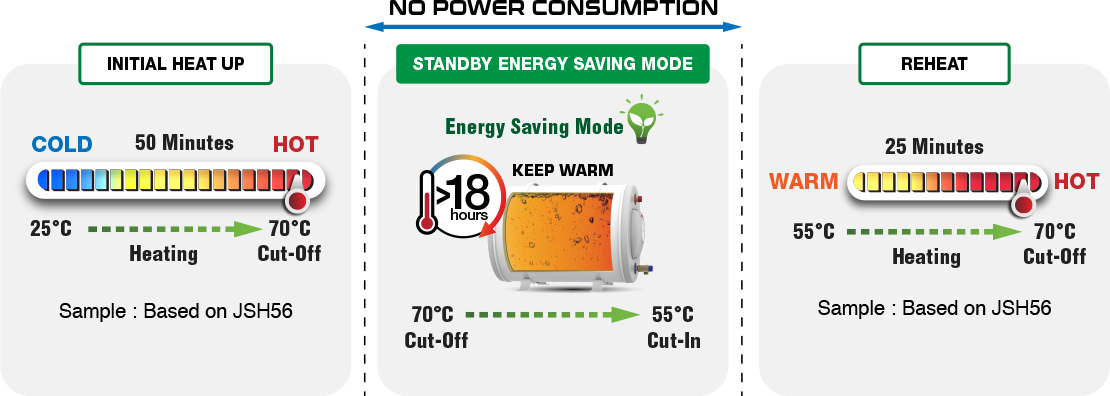

Save Energy with Joven Storage Water Heater with Stand-by Energy Saving Mode

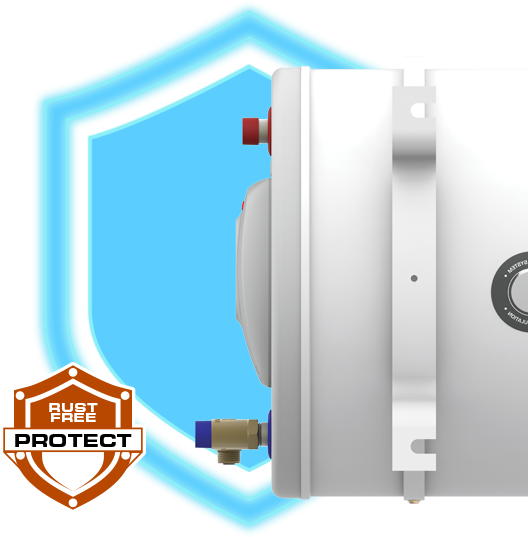

Durable
Built from high quality materials that withstand rust and rupture ensure long-lasting life and stellar performance.
- Premium Grade Stainless Steel
- High Quality Incoloy Heating Element
- Electro-Galvanised Steel Epoxy Coated Outer Tank
- High Quality Engineering Plastic
- Rust Free Materials
SAFETY FEATURES
Enhanced Dry Burn Protection
Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability in an event of a dry-burn.
Thermostat with Safety Cut-Off
Thermostatically controlled at 70°c and Safety Cut-Off at 95°C.
Pressure Relief & Drain Valve
- The Pressure Relief & Drain Valve relieves excessive built-up of pressure from the water tank during heating process.
- Made from good quality materials to ensure no rust or rupture with prolonged use.
ACCESSORIES

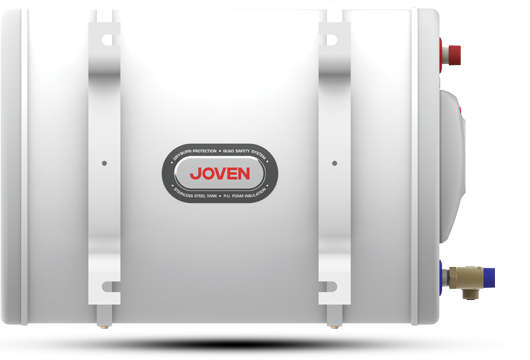

Easy Mounting With Universal Mounting Ring Bracket (Patent Pending)
An innovation by Joven, the Universal Mounting Ring Bracket enables easy and universal mounting of the storage heater in a horizontal position.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
2 Units Universal Mounting Ring
Firm balance with mounting ring bracket
Expansion Bolts
4 units for safer mounting
TECHNICAL SPECIFICATION
-
Electrical Loading
1.5 – 3.0 kW ; 13 Amp – 20 Amp -
Tank Capacity
56 Litres ( 12.3 Imp. Gallons ) -
Time Taken To Heat Max 70°C
50 Mins ( 1st Heat Up From Cold Water )
25 Mins ( Subsequent Heat Up )
-
Recommended Water Pressure
1 – 4 Bar -

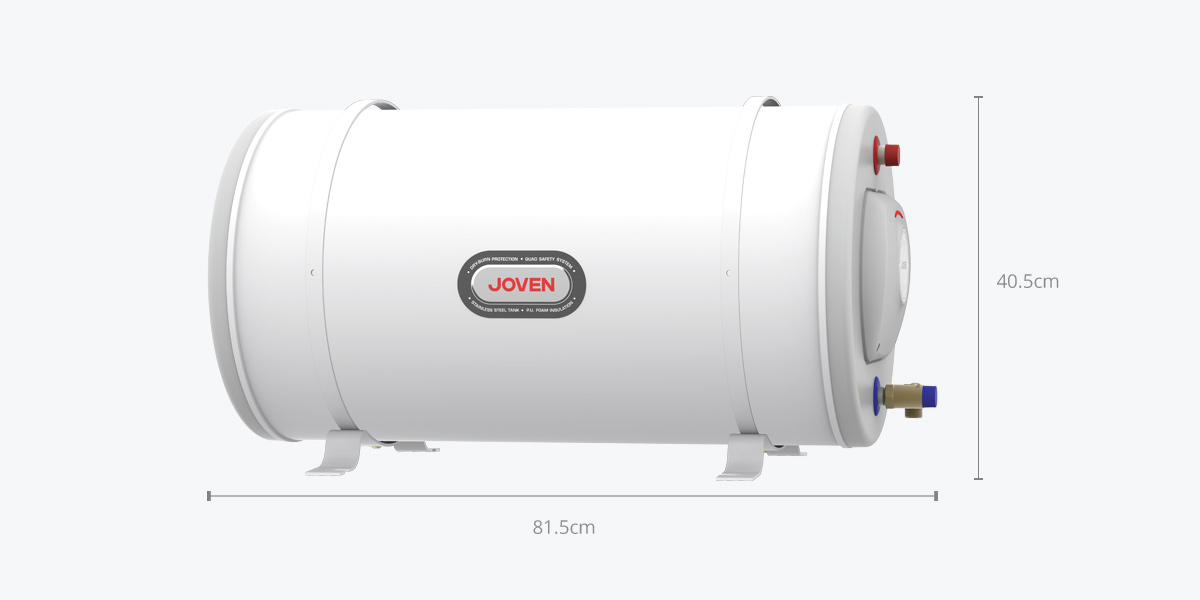

Dimensions (W * H * L)
381 x 405 x 815 mm -
Approx. Weight
Empty : 18 kg ; Full : 74 kg
