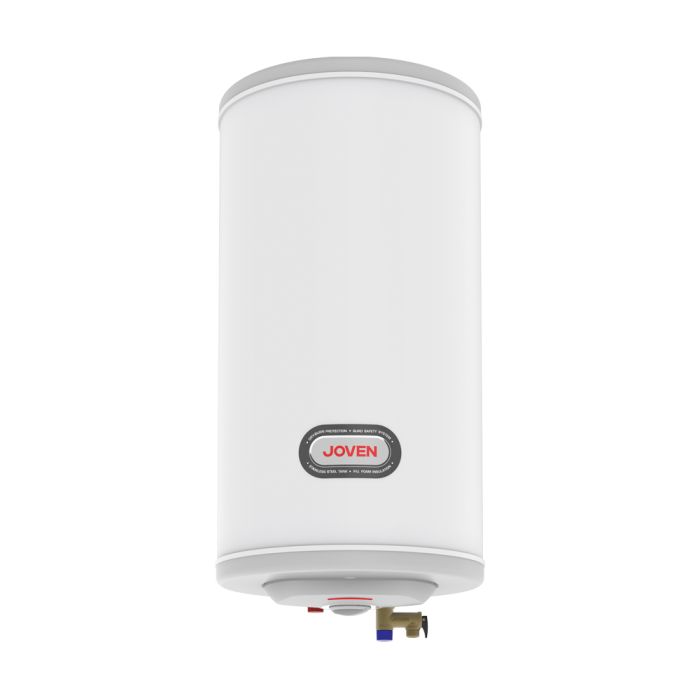

JSV50 Storage Water Heater

SKU
525402003
In stock

Innovative Features

  • Centralised Multi-point System with Enhanced Dry-Burn protection
  • For 2 standard Shower / 1 Rainshower 8” / 1 Rainshower 6” or 1 Wash Basin
  • For Kitchen Sink - Commercial Low Usage
  • Vertical Mounting Position
  • Capacity 50L ; 11.0 Imp. Gallons
  • Power rating 1.5 – 3.0 kW ; 13 Amp – 20 Amp
  • Adjustable Temperature Control Knob (Low, Med & High)
  • Hot water up to 70°C
  • High quality Incoloy Heating Element
  • Premium Grade Stainless Steel
  • High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
  • Antibacterial Heating Technology

Accessories

  • Wall Bracket For Mounting
  • Expansion Bolts

Safety Features

  • Enhanced Dry-Burn Protection
  • Thermostat with Thermal cut-off
  • Pressure Relief and Drain Valve
Show More

INNOVATIVE FEATURES

Luxurious Hot Water delivered to your choice of shower or mixer tap system such as bathtub, jacuzzi, shower, Rainshower, sink-tap or kitchen just with the connection to the mixer tap.

Your Reliable Hot water SolutionAdjustable Temperature Control Knob

With leading cutting edge and technical expertise manufactured according to certified standards, Joven Storage Water Heater is the preferred choice for a hotter water solution throughout your home or premise that delivers luxurious hot water whenever you need.

Provides For 2 Standing Showers or 1 Rainshower 8” JSV50

The capacity 50L or 11.0 Imp. Gallons at 70°C can provide up to 196.67L of warm water at 38°C according to inlet temperature of 27°C. Suitable for 2 Standing Showers or 1 Rainshower 8”.

Provides Hot Water for Commercial Kitchen Use

A 50L provides for light use in commercial kitchen for washing, degreasing, sanitising untensils, cookware or surfaces.

Adjustable Temperature Control Knob

Adjust the temperature from Low, Med to High (For JSV models only).

Joven

Long Lasting Heat

Get Longer Lasting Hot Water with Energy Saving knowing that the Storage Water Heater System has an Auto-Thermostat Cut-Out and efficient Insulation system that keeps the water hotter for longer, day or night anytime throughout the day.

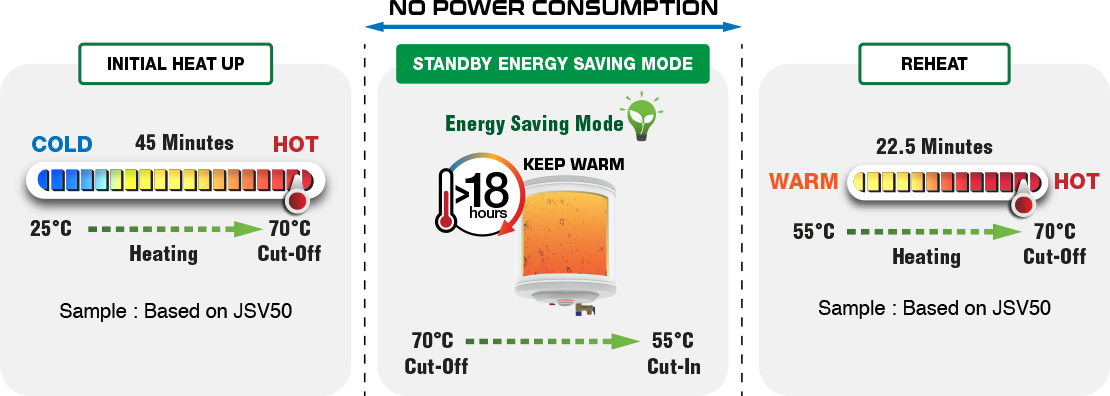

Save Energy with Joven Storage Water Heater with Stand-by Energy Saving Mode

Durable

Built from high quality materials that withstand rust and rupture ensure long-lasting life and stellar performance.

  • Premium Grade Stainless Steel
  • High Quality Incoloy Heating Element
  • Electro-Galvanised Steel Epoxy Coated Outer Tank
  • High Quality Engineering Plastic
  • Rust Free Materials

SAFETY FEATURES

Joven

Enhanced Dry Burn Protection

Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability in an event of a dry-burn.

Joven

Thermostat with Safety Cut-Off

Thermostatically controlled at 70°c and Safety Cut-Off at 95°C.

Joven

Pressure Relief & Drain Valve

  • The Pressure Relief & Drain Valve relieves excessive built-up of pressure from the water tank during heating process.
  • Made from good quality materials to ensure no rust or rupture with prolonged use.

ACCESSORIES

Wall Bracket for Easy Mounting (Patent Pending)

The wall bracket for JSV storage heater is designed for vertical mounting of the storage tank.

Joven

Instruction Manual

Local language included

Joven

Warranty Card

Local product warranty included

Joven

Wall Bracket

Firm balance with mounting bracket

Joven

Expansion Bolts

4 units for safer mounting

TECHNICAL SPECIFICATION

  • Electrical Loading
    1.5 – 3.0 kW ; 13 Amp – 20 Amp
  • Tank Capacity
    50 Litres ( 11.0 Imp. Gallons )
  • Time Taken To Heat Max 70°C
    45 Mins ( 1st Heat Up From Cold Water )
    22.5 Mins ( Subsequent Heat Up )
  • Recommended Water Pressure
    1 – 4 Bar

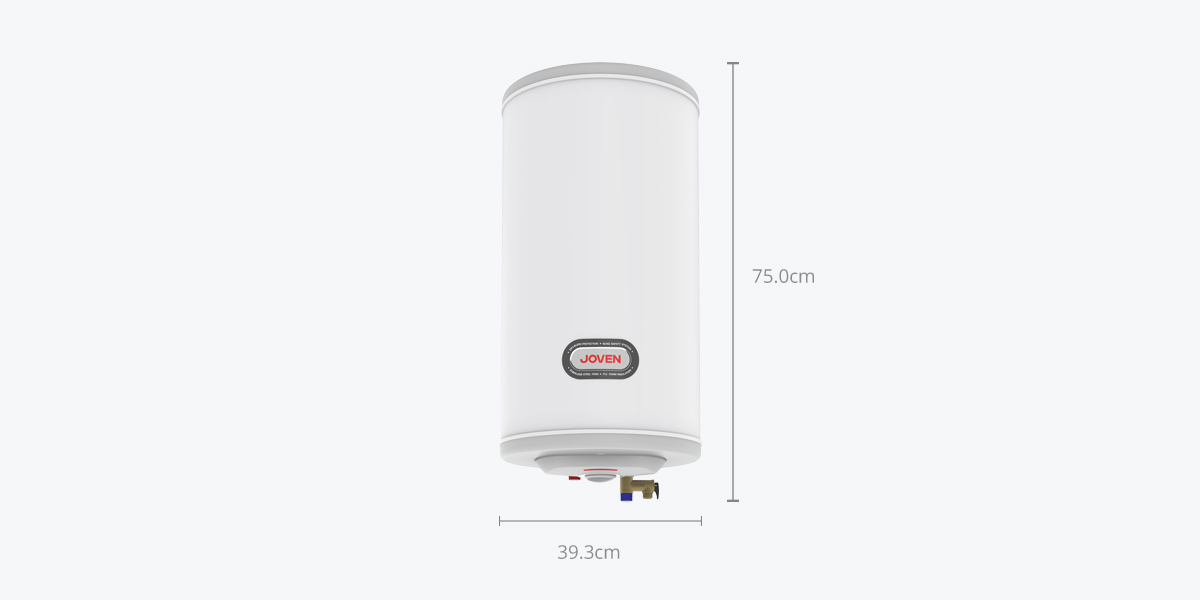

  • Dimensions (W * H * L)
    372 x 750 x 393 mm
  • Approx. Weight
    Empty : 17 kg ; Full : 67 kg
