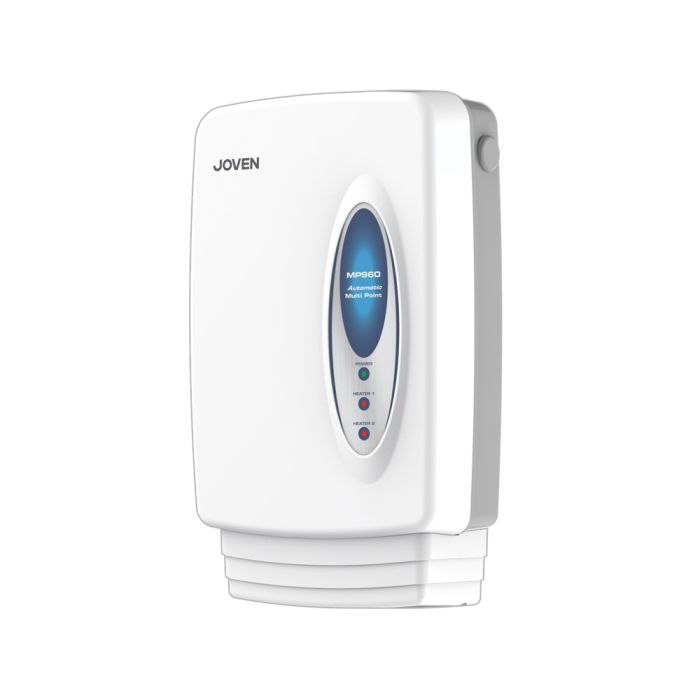

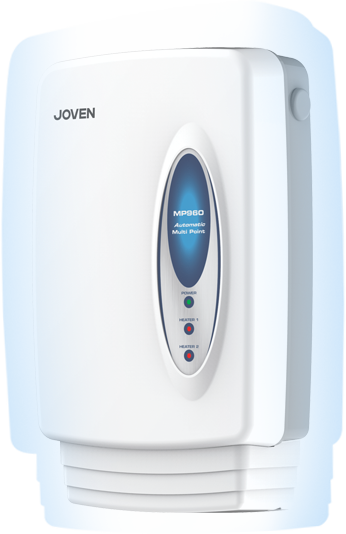

MP960 Multi-point Instant Water Heater

SKU

321020002

In stock

Innovative Features

Compact Tankless Multi-Point Instant Water Heater
Pressure Differential Heating Function
8.0-9.6kw 220-240Va.c. 50/60Hz
Antibacterial Heating Technology

Accessories

Customised Plumbing Cover

5 Safety Features

Thermostat with Safety Cut-Out
Splash Proof IP25 Casing
Anti-Scalding Technology
Nylon Fiber Tank with Swirl Technology
Durable Copper Heating Element

Find It At The Nearest Store

INNOVATIVE FEATURES

High Performance Fast Heating8.0 - 9.6kw Power

Water is heated instantly from cool to hot with no waiting time required.

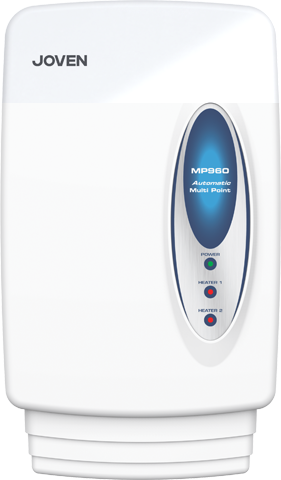

Pressure Differential Heating Function

Intelligent pressure differential flow switch allows automatic temperature regulation. Low pressure operates heater 1 whereas high pressure operates heater 2 to avoid overheating in between changing water pressure.

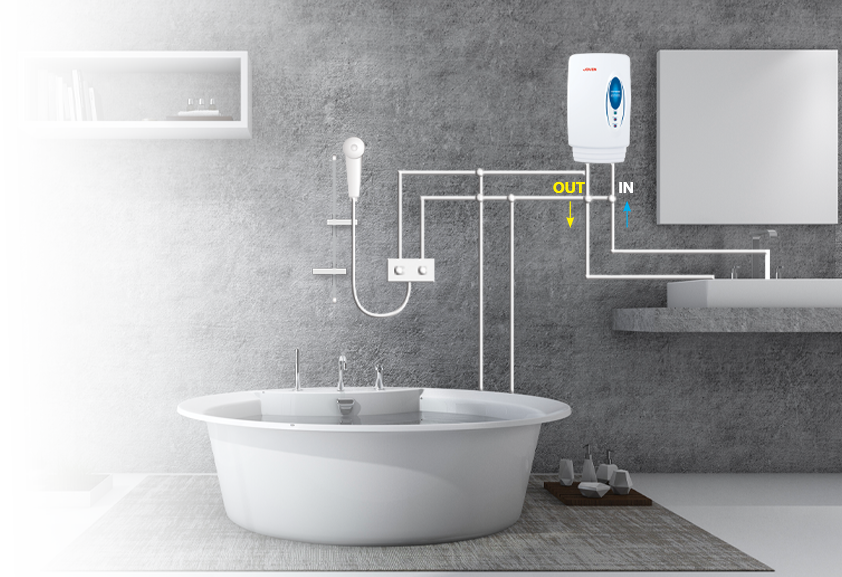

Multipoint Connection

Connects to your bathtub, shower, sink and jacuzzi within a single bathroom

Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter

Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.

5 SAFETY FEATURES

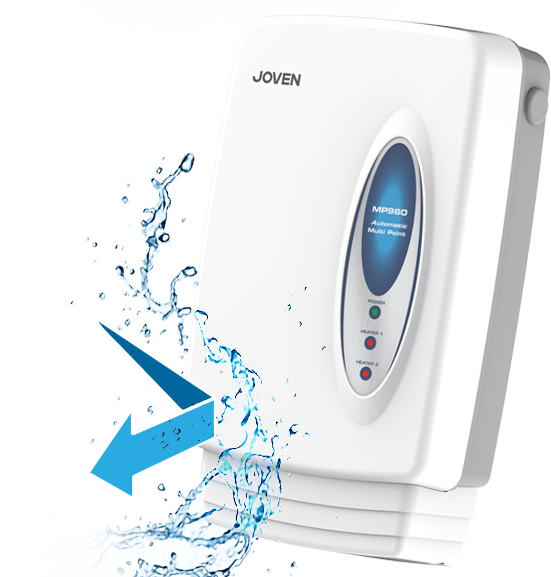

High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard

The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.

Anti-Scalding Technology

Your safety assured with Anti-Scalding Technology.

Durable Copper Heating Element

Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.

Thermal Cut-Out Technology

This safety device will interrupt power supply in the event of overheating and prevent fire hazard.

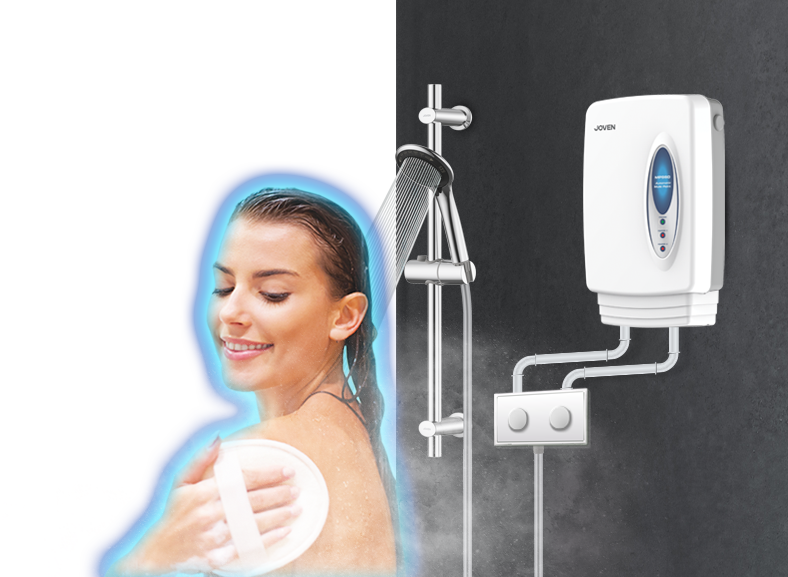

Nylon Fibre Tank With Swirl Technology

Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.

ACCESSORIES

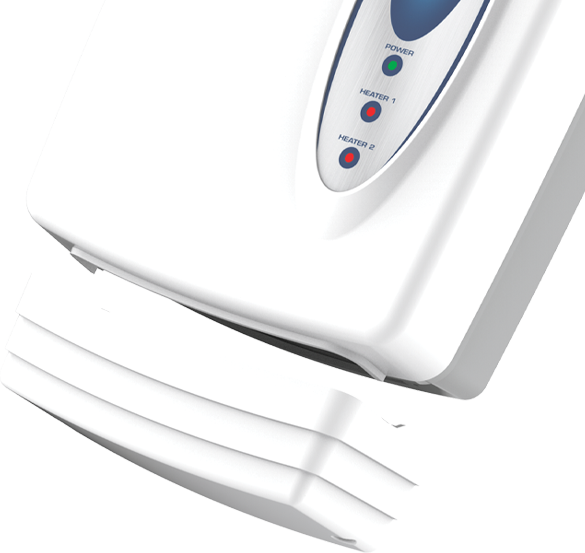

Plumbing Cover

Conceals piping below the water heater inlet and outlet with a customised plumbing cover.

Instruction Manual

Local language included

Warranty Card

Local product warranty included

Screw and Wall Plug

5 sets to mount unit on the wall

TECHNICAL SPECIFICATION

Electrical Loading
8.0-9.6kw 220-240Va.c. 50/60Hz
Min. Water Pressure
300kPa / 45psi / 3.0 bar
Max. Water Pressure
600kPa / 87psi / 6.0 bar
Min. Water Flow
3 Litres per minute

Max. Water Flow
10 Litres per minute
Inlet/Outlet Connection
Ø15mm (1/2” BSP) – Single Point System

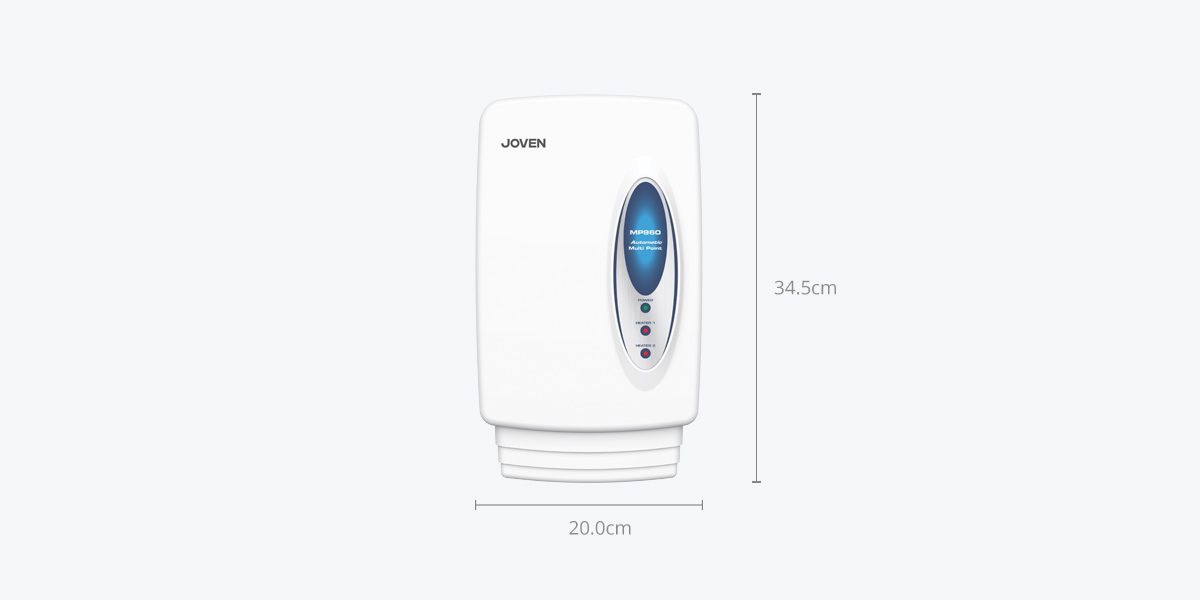

Dimensions
200 x 345 x 100 mm
Weight
2.0kg
