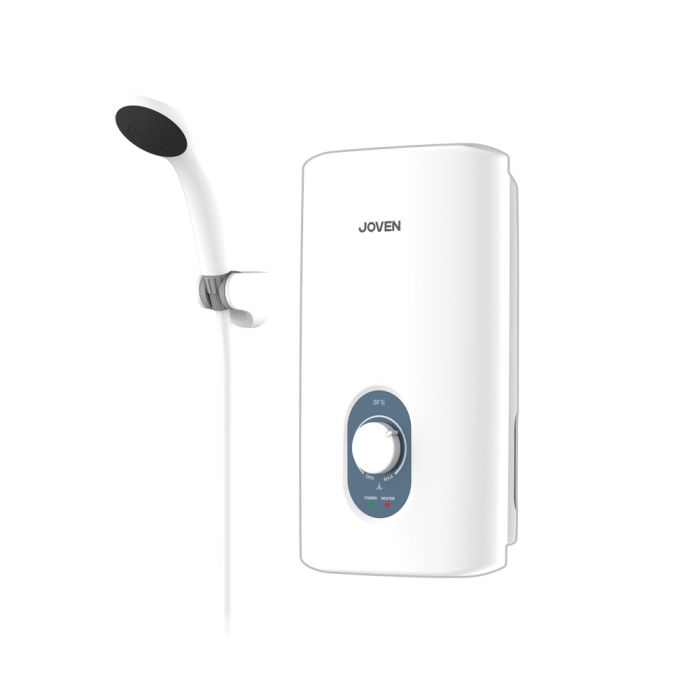

SF5 Instant Water Heater
Innovative Features
- Sleek and Stylish Casing
- Stepless Electronic Power Control
- 3.5kW-5.5kW ; 220Va.c, 3.8kW-6.0kW ; 230Va.c
- Antibacterial Heating Technology
Accessories
- SX3 Spray Showerhead
- Inclinable Wall Bracket
- Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose
- ¼ Turn Valve for On/Off Shower
9 Safety Features
- Thermostat with Safety Cut-Out
- Splash Proof IP25 Casing
- Anti-Scalding Technology
- Nylon Fiber Tank with Swirl Technology
- SFS Technology
- Durable Copper Heating Element
- Triple Reinforced & Insulated Hose
- SVF Valve With Built-In Filter
- SGS Certified 99.99% Antibacterial Swirl Heating System
INNOVATIVE FEATURES
Compact & Stylish For That Perfect Comfort
Simplicity meets Elegance with a compact and stylish design is what the SF Series delivers to your home that guarantees to delight you in more ways than one.
High Performance Fast Heating3.5-6.0kW Power
Water is heated instantly from cool to hot with no waiting time required.

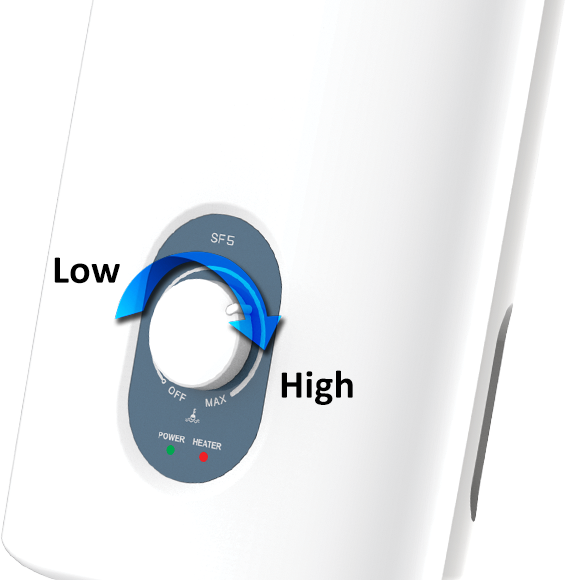

Adjust to the Temperature You Desire Stepless Electronic Power Control System
Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.
Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
SAFETY FEATURES
High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard
The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.
Anti-Scalding Technology
Your safety assured with Anti-Scalding Technology.
Durable Copper Heating Element
Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.
.

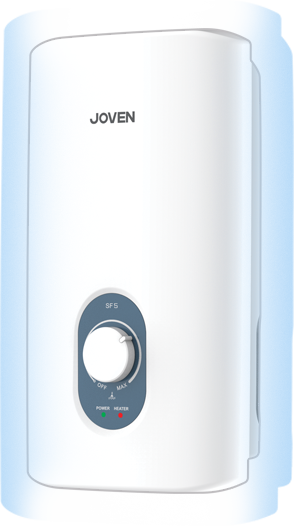

Thermal Cut-Out Technology
This safety device will interrupt power supply in the event of overheating and prevent fire hazard.
Nylon Fibre Tank With Swirl Technology
Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.

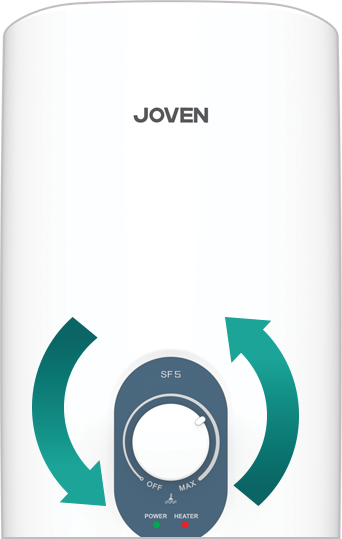

SFS Technology
The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.
Triple Reinforced & Insulated Hose
5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

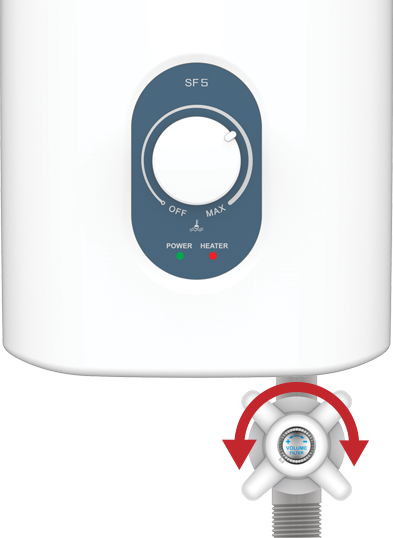

SVF Valve with Built-In Filter
Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.
ACCESSORIES
Inclinable Wall Bracket With Triple Reinforced Non-Conductive Hose
The wall bracket enables easy adjustment of your desired shower angle. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.
SX3 Spray Showerhead
Get an Invigorating and Refreshing Sensation with 3 Spray Showerhead options.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Screw and Wall Plug
5 sets to mount unit on the wall
Washer
2 pieces to be placed at inlet and outlet as water tight seal
Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action
TECHNICAL SPECIFICATION
-
Electrical Loading
3.5kW, 4.5kW, 5.5kW ; 220Va.c
3.8kW, 4.9kW, 6.0kW ; 230Va.c -
Min. Water Pressure
10kPa / 1.45psi / 0.1 bar -
Max. Water Pressure
380kPa / 55psi / 3.8 bar -
Min. Water Flow
2 Litres per minute -
Max. Water Flow
8 Litres per minute
-
Water Temp. Control
Stepless Electronic Power Control -
Inlet/Outlet Connection
Ø15mm (1/2” BSP) – Single Point System -

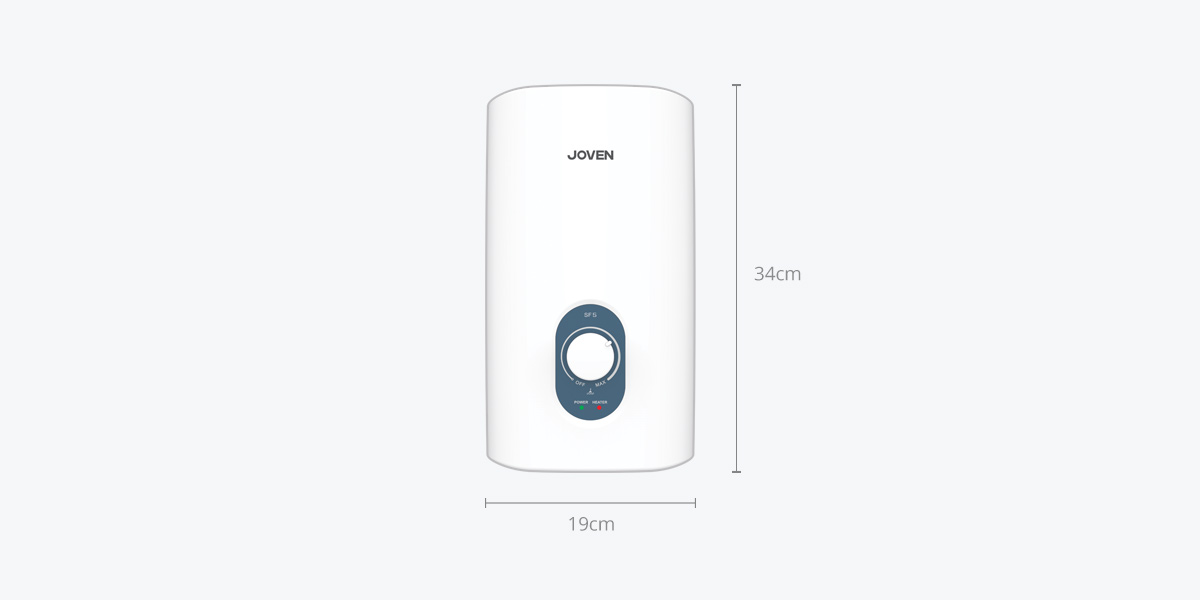

Dimensions
190 x 340 x 77 mm -
Weight
1.8kg
