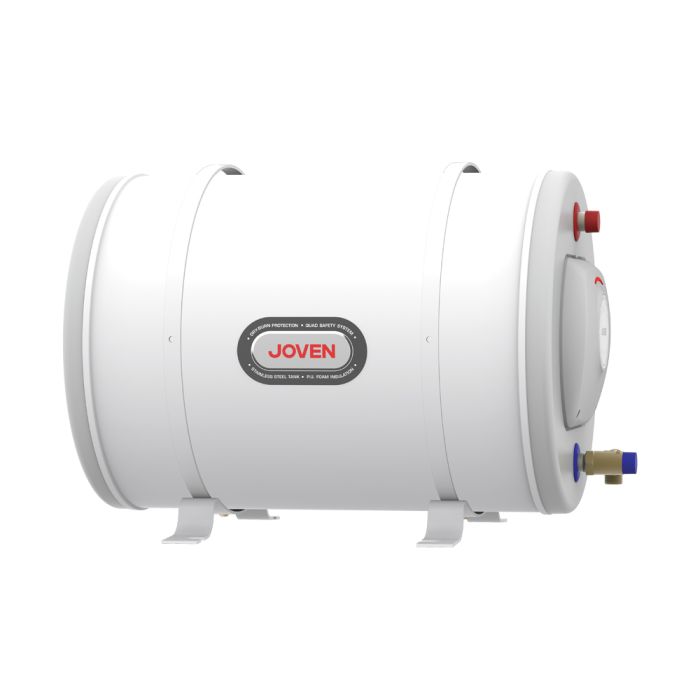

JSH35 Storage Water Heater
Innovative Features
- Centralised Multi-point System with Enhanced Dry-Burn protection
- For 1 standard Shower and 1 Wash Basin / 1 Rainshower 6”
- For Kitchen Sink - Domestic Medium Usage
- Horizontal Mounting Position
- Capacity 35L ; 7.74 Imp. Gallons
- Power rating 3.0kw; 240V
- Hot water up to 70°C
- High quality Incoloy Heating Element
- SUS304 Stainless Steel Tank
- HE Energy Saving Technology ; Save Energy 20%
- High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
- Antibacterial Heating Technology
Accessories
- Universal Mounting Ring Bracket (Patent Pending)
- Expansion Bolts
Safety Features
- Enhanced Dry-Burn Protection
- Thermostat with Thermal cut-off
- Pressure Relief and Drain Valve
• Isolation barrier (for Malaysia only)
INNOVATIVE FEATURES
Your Reliable Hot water SolutionCentralised Multi-Point System For Your Entire Home.
With leading cutting edge and technical expertise manufactured according to certified standards, Joven Storage Water Heater is the preferred choice for a hotter water solution throughout your home or premise that delivers luxurious hot water whenever you need.
Provides For 1 Standing Shower or 1 Rainshower 6” JSH35
The capacity 35L or 7.7 Imp. Gallons at 70°C can provide up to 128.5L of warm water at 38°C according to inlet temperature of 26°C. Suitable for a standing shower or a rainshower 6”.
Provides Hot Water for Domestic Kitchen Use
A 35L provides for light use in domestic kitchen for washing, degreasing, sanitising untensils, cookware or surfaces.
Long Lasting Heat
Get Longer Lasting Hot Water with Energy Saving knowing that the Storage Water Heater System has an Auto-Thermostat Cut-Out and efficient Insulation system that keeps the water hotter for longer, day or night anytime throughout the day.
Save Energy with Joven Storage Water Heater with Stand-by Energy Saving Mode
Durable
Built from high quality materials that withstand rust and rupture ensure long-lasting life and stellar performance.
- SUS304 Stainless Steel Inner Tank
- High Quality Incoloy Heating Element
- Electro-Galvanised Steel Epoxy Coated Outer Tank
- High Quality Engineering Plastic
- Rust Free Materials
SAFETY FEATURES
Enhanced Dry Burn Protection
Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability in an event of a dry-burn.
Isolation Barrier
Connected at both inlet and outlet of the tank, the isolation barrier acts as an isolator to ensure no accidental electrical leakage.
Thermostat with Safety Cut-Off
Thermostatically controlled at 70°c and Safety Cut-Off at 95°C.
Pressure Relief & Drain Valve
- The Pressure Relief & Drain Valve relieves excessive built-up of pressure from the water tank during heating process.
- Made from good quality materials to ensure no rust or rupture with prolonged use.
ACCESSORIES
Easy Mounting With Universal Mounting Ring Bracket (Patent Pending)
An innovation by Joven, the Universal Mounting Ring Bracket enables easy and universal mounting of the storage heater in a horizontal position.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
2 Units Universal Mounting Ring
Firm balance with mounting ring bracket
Expansion Bolts
4 units for safer mounting
TECHNICAL SPECIFICATION
-
Electrical Loading
3.0kw ; 15.0A ; 240 Va.c. ; 50 Hz -
Tank Capacity
35 Litres ( 7.7 Imp. Gallons ) -
Time Taken To Heat Max 70°C
30 Mins ( 1st Heat Up From Cold Water )
15 Mins ( Subsequent Heat Up )
-
Recommended Water Pressure
1 – 4 Bar -
Dimensions (W * H * L)
381 x 405 x 576 mm -
Approx. Weight
Empty : 14 kg ; Full : 49 kg
