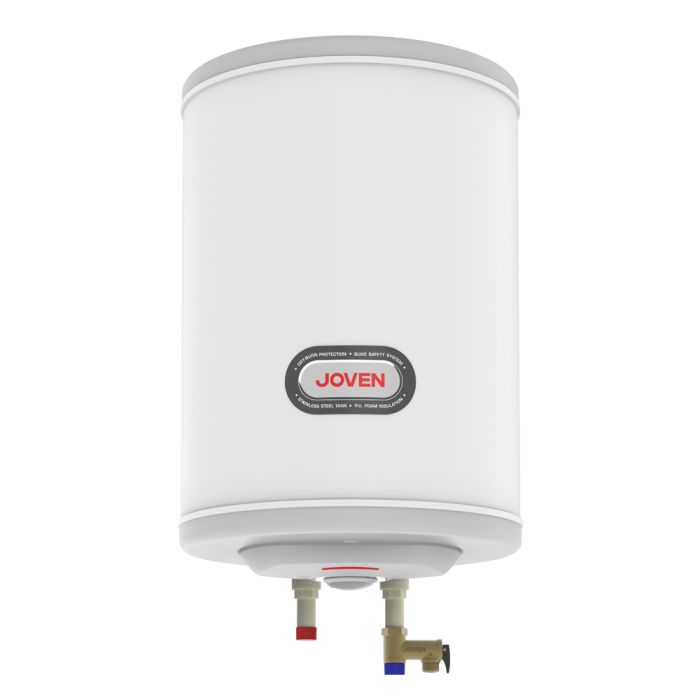

JSV35 Storage Water Heater
Innovative Features
- Centralised Multi-point System with Enhanced Dry-Burn protection
- For 1 standard Shower and 1 Wash Basin / 1 Rainshower 6”
- For Kitchen Sink - Domestic Medium Usage
- Vertical Mounting Position
- Capacity 35L ; 7.7 Imp. Gallons
- Power rating 3.0 kW ; 240V
- Adjustable Temperature Control Knob (Low, Med & High)
- Hot water up to 70°C
- High quality Incoloy Heating Element
- Premium Grade Stainless Steel
- High density CFC-Free Polyurethane Insulation Foam for durability and Long Lasting Heat
- Antibacterial Heating Technology
Accessories
- Wall Bracket For Mounting
- Expansion Bolts
Safety Features
- Enhanced Dry-Burn Protection
- Thermostat with Thermal cut-off
- Pressure Relief and Drain Valve
- Isolation barrier (for Malaysia only)
INNOVATIVE FEATURES
Luxurious Hot Water delivered to your choice of shower or mixer tap system such as bathtub, jacuzzi, shower, Rainshower, sink-tap or kitchen just with the connection to the mixer tap.

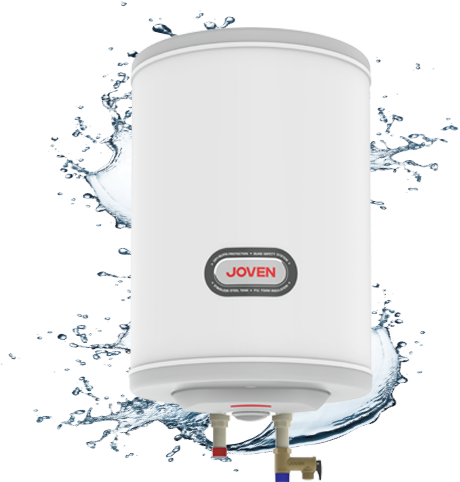

Your Reliable Hot water SolutionCentralised Multi-Point System For Your Entire Home.
With leading cutting edge and technical expertise manufactured according to certified standards, Joven Storage Water Heater is the preferred choice for a hotter water solution throughout your home or premise that delivers luxurious hot water whenever you need.
Provides For 1 Standing Shower or 1 Rainshower 6” JSV35
The capacity 35L or 7.7 Imp. Gallons at 70°C can provide up to 137.67L of warm water at 38°C according to inlet temperature of 27°C. Suitable for a standing shower or a rainshower 6”.
Provides Hot Water for Domestic Kitchen Use
A 35L provides for light use in domestic kitchen for washing, degreasing, sanitising untensils, cookware or surfaces.
Adjustable Temperature Control Knob
Adjust the temperature from Low, Med to High (For JSV models only).
Long Lasting Heat
Get Longer Lasting Hot Water with Energy Saving knowing that the Storage Water Heater System has an Auto-Thermostat Cut-Out and efficient Insulation system that keeps the water hotter for longer, day or night anytime throughout the day.

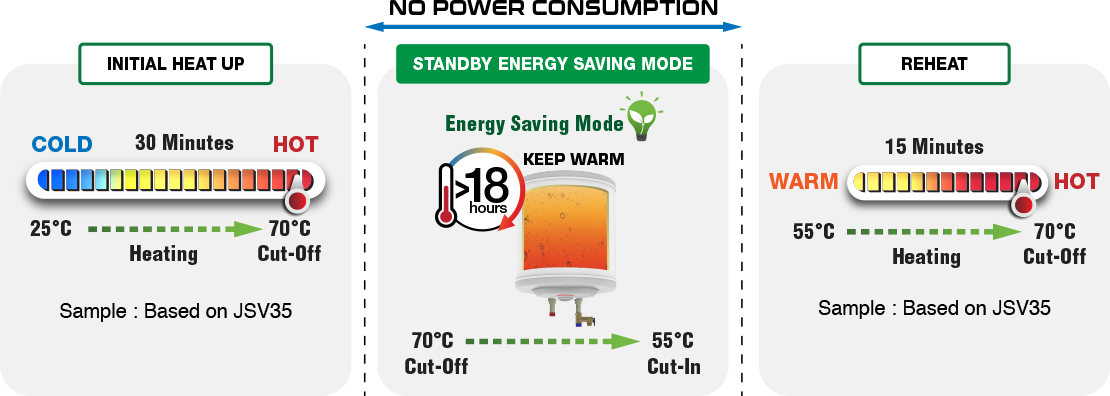

Save Energy with Joven Storage Water Heater with Stand-by Energy Saving Mode
Durable
Built from high quality materials that withstand rust and rupture ensure long-lasting life and stellar performance.
- Premium Grade Stainless Steel
- High Quality Incoloy Heating Element
- Electro-Galvanised Steel Epoxy Coated Outer Tank
- High Quality Engineering Plastic
- Rust Free Materials
SAFETY FEATURES
Enhanced Dry Burn Protection
Centralised Multi-Point Storage Water Heater with Enhanced Dry-Burn Protection that auto-trips to ensure longer durability in an event of a dry-burn.
Isolation Barrier
Connected at both inlet and outlet of the tank, the isolation barrier acts as an isolator to ensure no accidental electrical leakage.
Thermostat with Safety Cut-Off
Thermostatically controlled at 70°c and Safety Cut-Off at 95°C.
Pressure Relief & Drain Valve
- The Pressure Relief & Drain Valve relieves excessive built-up of pressure from the water tank during heating process.
- Made from good quality materials to ensure no rust or rupture with prolonged use.
ACCESSORIES
Wall Bracket for Easy Mounting (Patent Pending)
The wall bracket for JSV storage heater is designed for vertical mounting of the storage tank.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Wall Bracket
Firm balance with mounting bracket
Expansion Bolts
4 units for safer mounting
Isolation Barrier
2 units to act as isolator
TECHNICAL SPECIFICATION
-
Electrical Loading
3.0kw ; 15.0A ; 240 Va.c. ; 50 Hz -
Tank Capacity
35 Litres ( 5.5 Imp. Gallons ) -
Time Taken To Heat Max 70°C
30 Mins ( 1st Heat Up From Cold Water )
15 Mins ( Subsequent Heat Up )
-
Recommended Water Pressure
1 – 4 Bar -

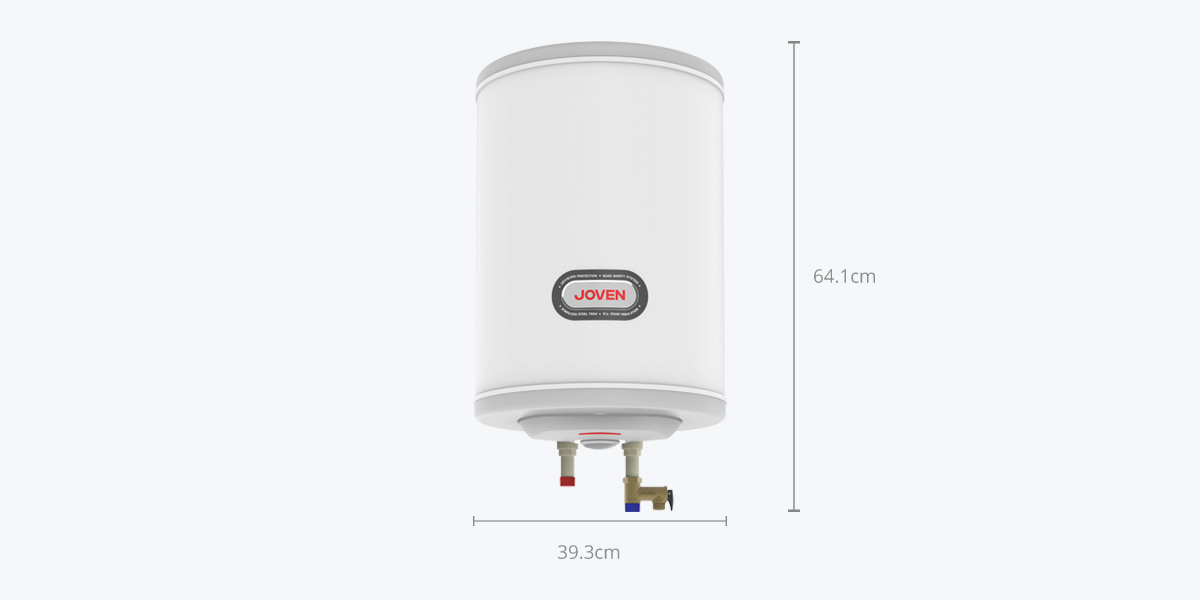

Dimensions (W * H * L)
372 x 641 x 393 mm -
Approx. Weight
Empty : 14 kg ; Full : 49 kg
