Sensational showers with urban and stylish design is what defines the SC33 Series. Designed with a touch of elegance, it complements your bathroom interiors with a choice of colours.
High Performance Fast Heating3.6kW Power
Water is heated instantly from cool to hot with no waiting time required.

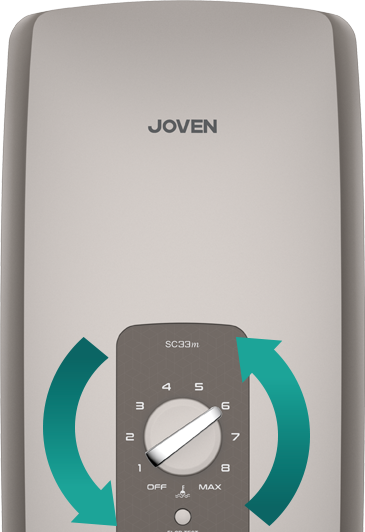

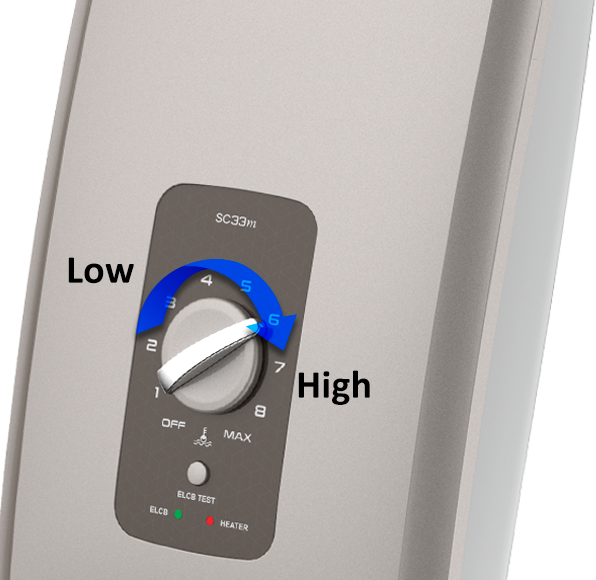

Adjust to the Temperature You Desire Stepless Electronic Power Control System
Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.
Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
For that long lasting colour finish that lasts for years to come, our colour models come with double layer 2K Spray paint finish. (Colour models only)
SAFETY FEATURES

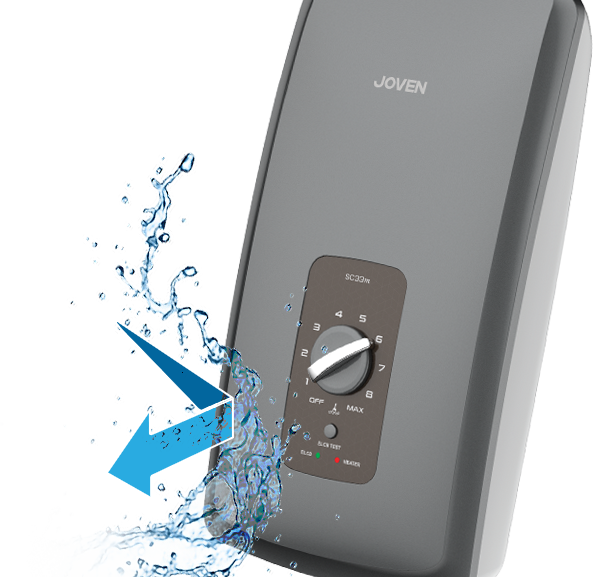

High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard
The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.

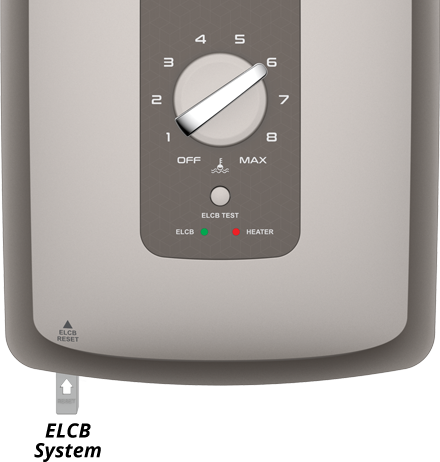

Enhanced Protection Against Current Leakage Double Poles ELCB | <10mA Standard
Your safety are assured with the industry’s safest Double Poles ELCB which is 10mA sensitivity which that off current both live and neutral line at high speed with detection of any current leakage above 10mA.
Anti-Scalding Technology
Your safety assured with Anti-Scalding Technology.
Durable Copper Heating Element
Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.
.

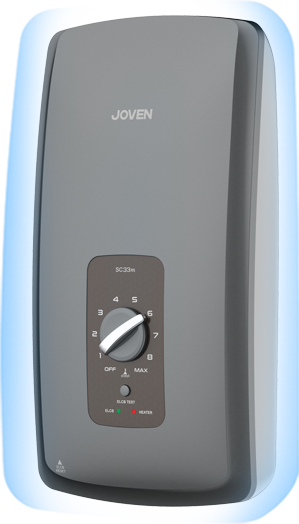

Thermal Cut-Out Technology
This safety device will interrupt power supply in the event of overheating and prevent fire hazard.
Nylon Fibre Tank With Swirl Technology
Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.
SFS Technology
The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.
Triple Reinforced & Insulated Hose
5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

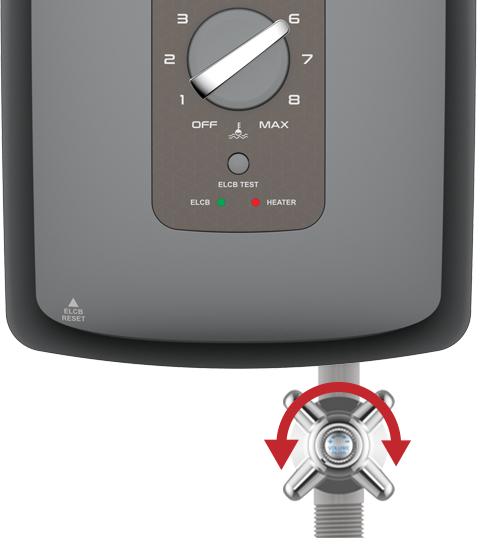

SVF Valve with Built-In Filter
Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.
Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
ACCESSORIES

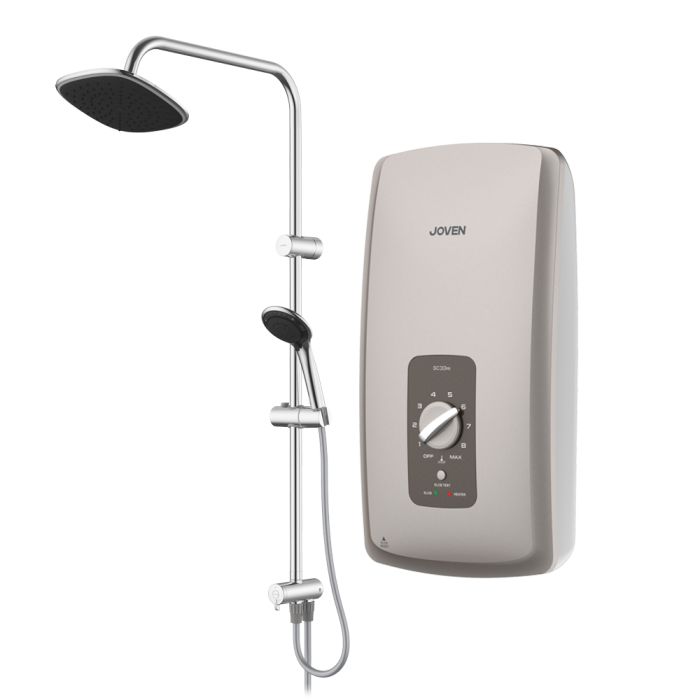

Rotatable 8” Rainshower Bar Set (Pat. Pending)With Triple Reinforced Non-Conductive Hose
Enjoy showering with the 8” Rotatable Rainshower & diverter valve that allows switching between normal and rainshower mode. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.
5 Spray Showerhead
Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Screw and Wall Plug
5 sets to mount unit on the wall
Washer
2 pieces to be placed at inlet and outlet as water tight seal
Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action

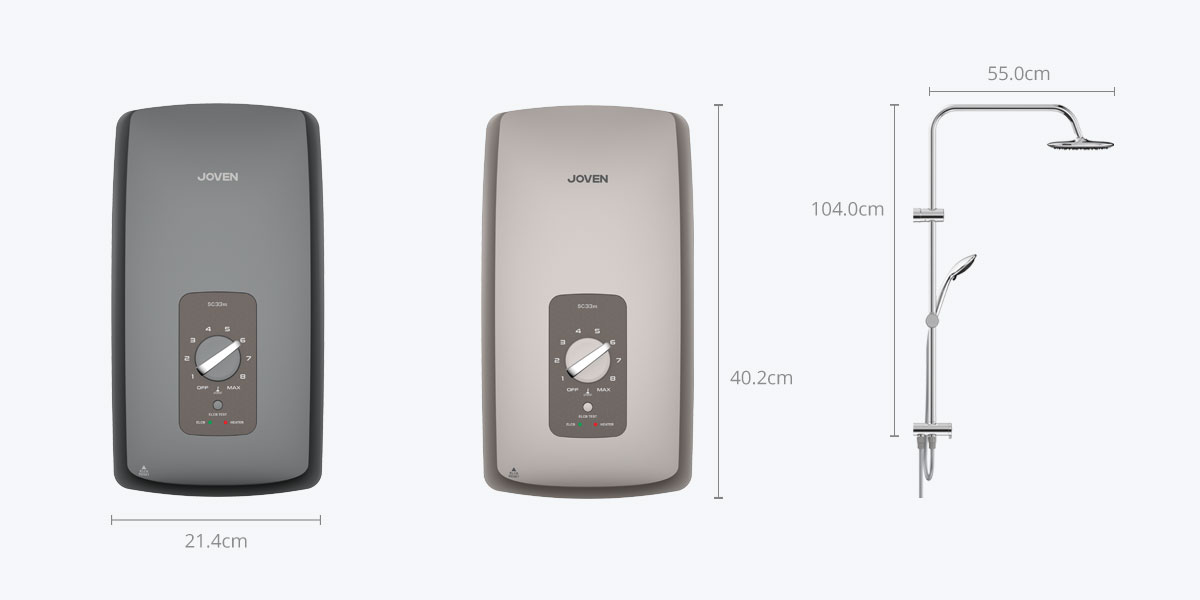

TECHNICAL SPECIFICATION
Electrical Loading
3.6kw 15.0A 240Va.c. 50Hz
Min. Water Pressure
10kPa / 1.45psi / 0.1 bar
Max. Water Pressure
380kPa / 55psi / 3.8 bar
Min. Water Flow
2 Litres per minute
Max. Water Flow
8 Litres per minute
Water Temp. Control
Stepless Electronic Power Control
Inlet/Outlet Connection
Ø15mm (1/2” BSP) – Single Point System
