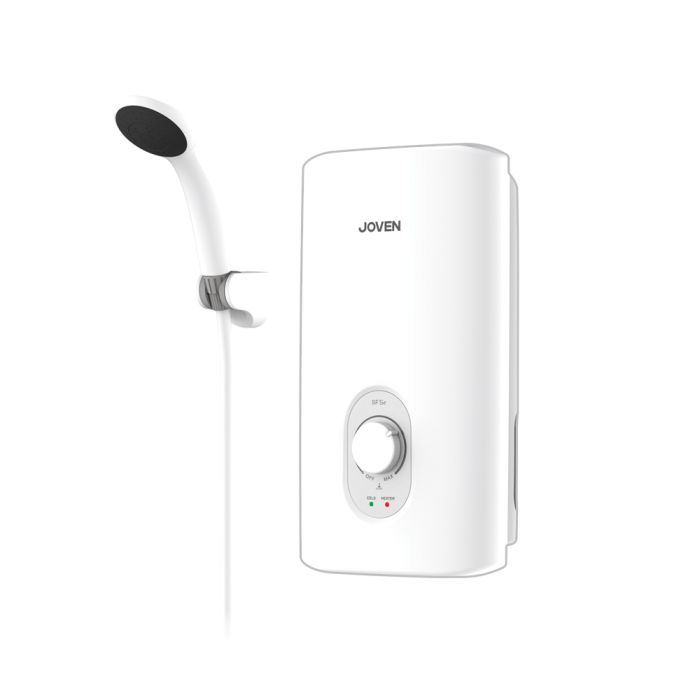

SF5e Instant Water Heater

SKU
5115601001
In stock

Innovative Features

  • Sleek and Stylish Casing
  • Stepless Electronic Power Control
  • 3.6kW 240V
  • Antibacterial Heating Technology

Accessories

  • SX3 Spray Showerhead
  • Inclinable Wall Bracket
  • Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose
  • ¼ Turn Valve for On/Off Shower

11 Safety Features

  • Thermostat with Safety Cut-Out
  • Double Poles EELS System with 10mA sensitivity
  • Splash Proof IP25 Casing
  • Surge Protector
  • Anti-Scalding Technology
  • Nylon Fiber Tank with Swirl Technology
  • SFS Technology
  • Durable Copper Heating Element
  • Triple Reinforced & Insulated Hose
  • SVF Valve With Built-In Filter
  • SGS Certified 99.99% Antibacterial Swirl Heating System
Show More
Available from:

INNOVATIVE FEATURES

Compact & Stylish For That Perfect Comfort

Simplicity meets Elegance with a compact and stylish design is what the SF Series delivers to your home that guarantees to delight you in more ways than one.

Joven

High Performance Fast Heating3.6kW Power

Water is heated instantly from cool to hot with no waiting time required.

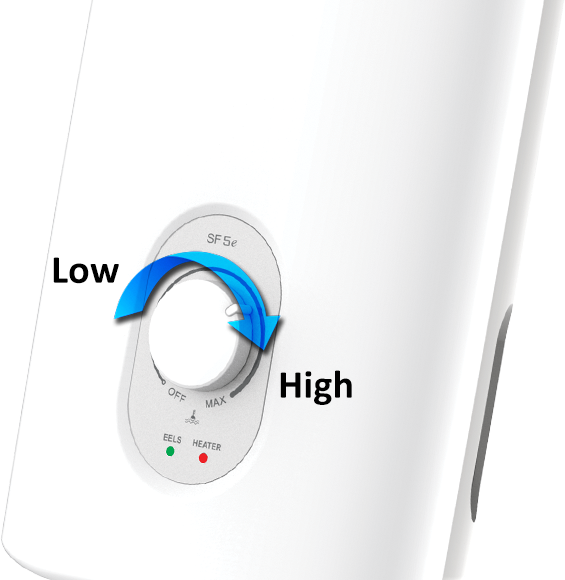

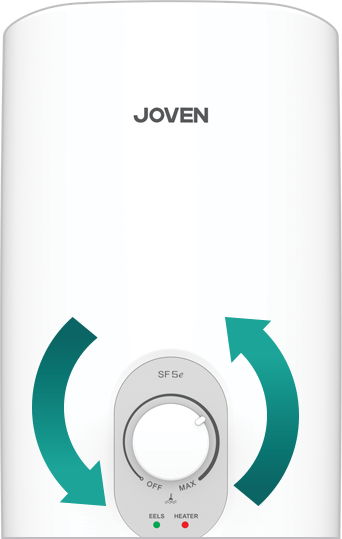

Adjust to the Temperature You Desire Stepless Electronic Power Control System

Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.

Joven

Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter

Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.

SAFETY FEATURES

Joven

High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard

The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.

Joven

Enhanced Protection Against Current Leakage Double Poles EELS System | <10mA Standard

Your safety are assured with the industry’s safest Double Poles EELS System which is 10mA sensitivity that cuts off current both live and neutral line at high speed with detection of any current leakage above 10mA.

Joven

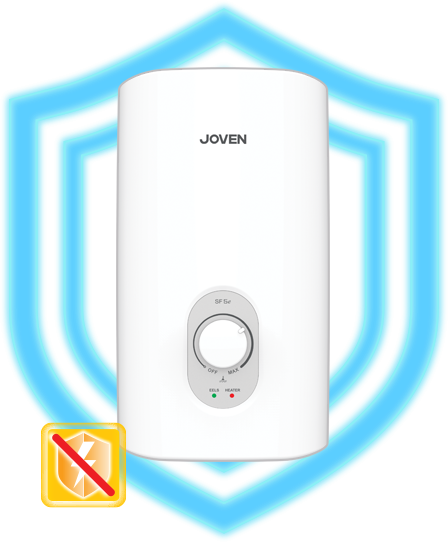

Surge Protector Comply with IEC 61000-4-5 (Level 3)

Protection against power surge which disconnects the power instantly.

Joven

Anti-Scalding Technology

Your safety assured with Anti-Scalding Technology.

Joven

Durable Copper Heating Element

Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.

.

Joven

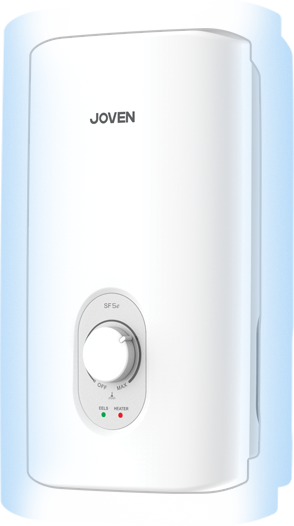

Thermal Cut-Out Technology

This safety device will interrupt power supply in the event of overheating and prevent fire hazard.

Joven

Nylon Fibre Tank With Swirl Technology

Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.

Joven

SFS Technology

The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.

Joven

Triple Reinforced & Insulated Hose

5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

Joven

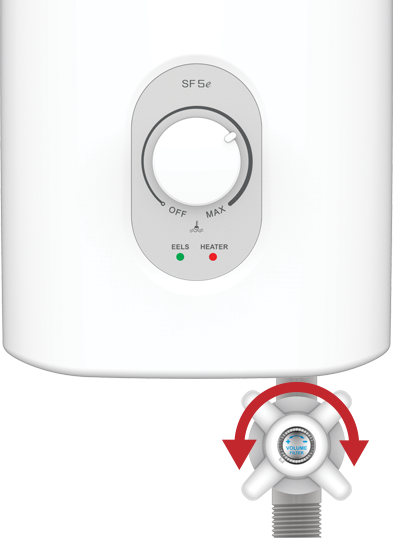

SVF Valve with Built-In Filter

Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.

ACCESSORIES

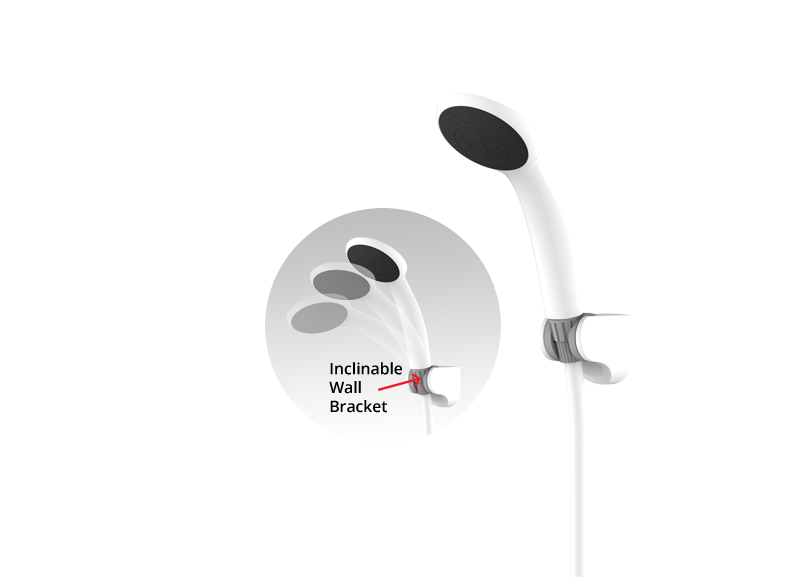

Inclinable Wall Bracket With Triple Reinforced Non-Conductive Hose

The wall bracket enables easy adjustment of your desired shower angle. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.

SX3 Spray Showerhead

Get an Invigorating and Refreshing Sensation with 3 Spray Showerhead options.

Joven

Instruction Manual

Local language included

Joven

Warranty Card

Local product warranty included

Joven

Screw and Wall Plug

5 sets to mount unit on the wall

Joven

Washer

2 pieces to be placed at inlet and outlet as water tight seal

Joven

Filter Cup

1 piece to be placed at hand shower entry as water tight seal and filter action

TECHNICAL SPECIFICATION

  • Electrical Loading
    3.6kW 15.0A 240Va.c. 50Hz
  • Min. Water Pressure
    10kPa / 1.45psi / 0.1 bar
  • Max. Water Pressure
    380kPa / 55psi / 3.8 bar
  • Min. Water Flow
    2 Litres per minute
  • Max. Water Flow
    8 Litres per minute
  • Water Temp. Control
    Stepless Electronic Power Control
  • Inlet/Outlet Connection
    Ø15mm (1/2” BSP) – Single Point System

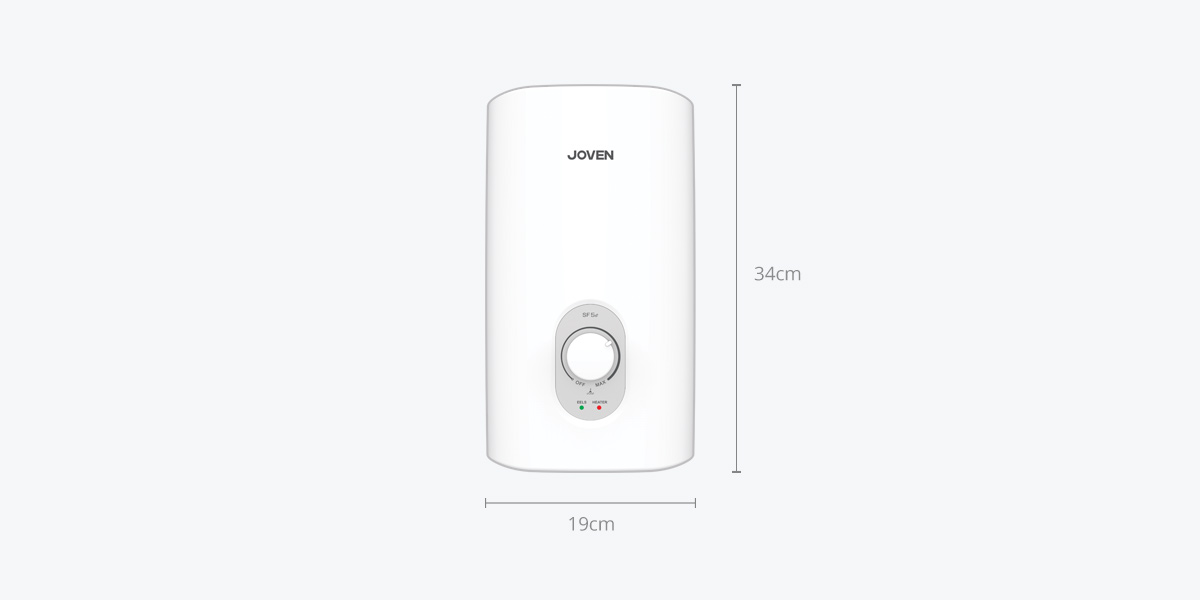

  • Dimensions
    190 x 340 x 77 mm
  • Weight
    2.0kg
