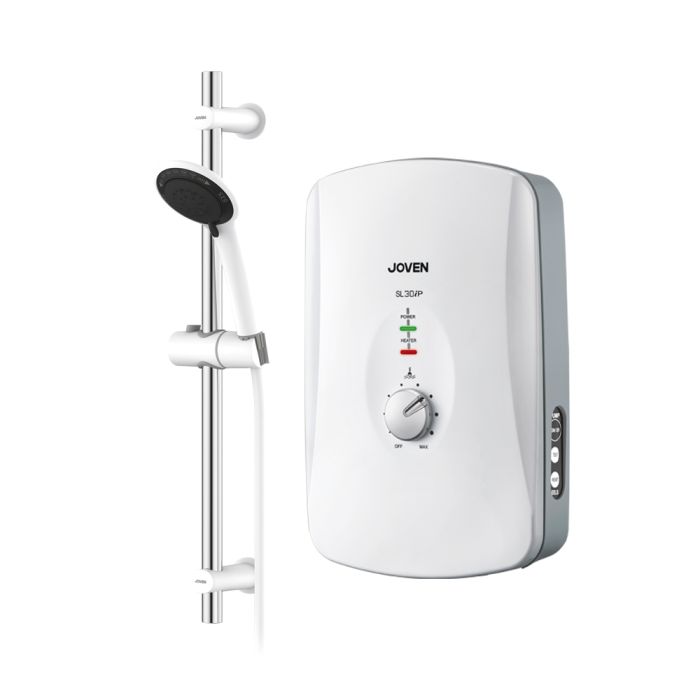

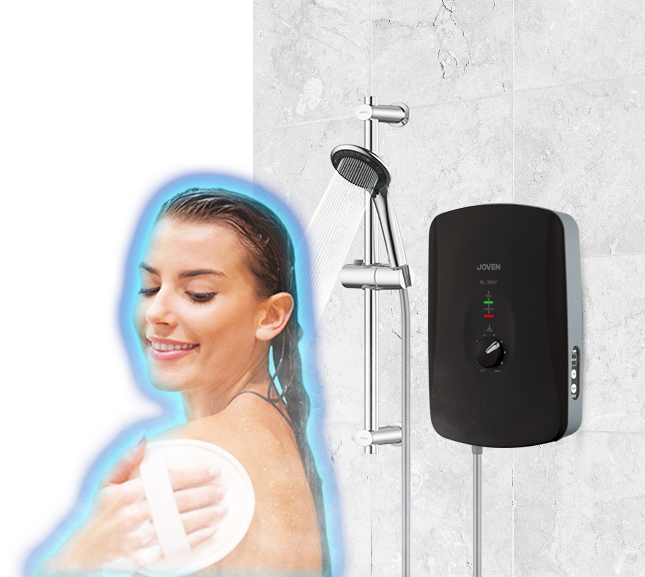

SL30iP Instant Water Heater
Innovative Features
- Sleek and Stylish Casing
- Double Layer 2K Spray Paint Finish with 2 Colour Options
- Energy Saving Inverter DC Pump 50%
- Stepless Electronic Power Control
- Silent Below 35dB
- 3.6kW 240V
- Antibacterial Heating Technology
- Pump On/Off Button
Accessories
- 5 Spray Showerhead
- Slim Slider Bar
- Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose
- ¼ Turn Valve for On/Off Shower
11 Safety Features
- Thermostat with Safety Cut-Out
- Double Poles EELS System with 10mA sensitivity
- Splash Proof IP25 Casing
- Surge Protector
- Anti-Scalding Technology
- Nylon Fiber Tank with Swirl Technology
- SFS Technology
- Durable Copper Heating Element
- Triple Reinforced & Insulated Hose
- SVF Valve With Built-In Filter
- SGS Certified 99.99% Antibacterial Swirl Heating System
INNOVATIVE FEATURES
Energy Saving & SilentPlus TechnologyQuiet Operation (Below 35dB)
The Inverter DC Pump Technology gives you 50% energy savings compared to the conventional booster pump and is silent below 35dB to give you the powerful & peaceful shower you desire.

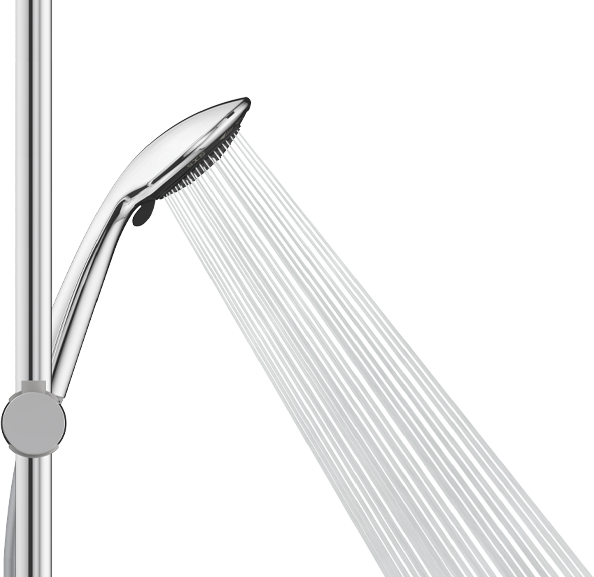

Boost Water Pressure Performance
Enjoy sensational boost in your water pressure with Joven Inverter Pump up to 4 times stronger compared to the initial water pressure.
High Performance Fast Heating3.6kW Power
Water is heated instantly from cool to hot with no waiting time required.

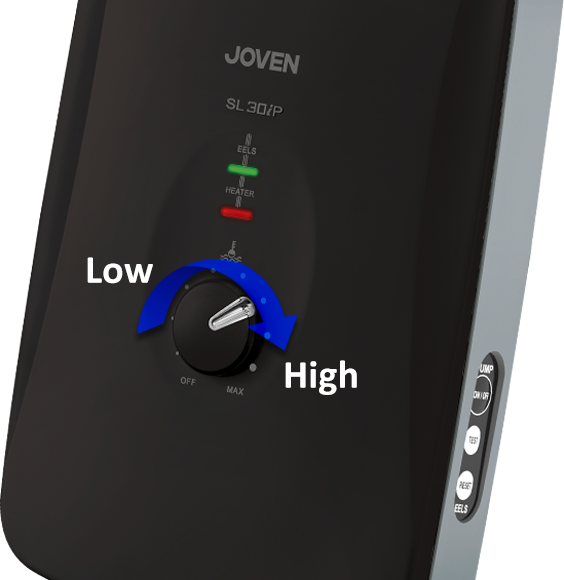

Adjust to the Temperature You Desire Stepless Electronic Power Control System
Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.

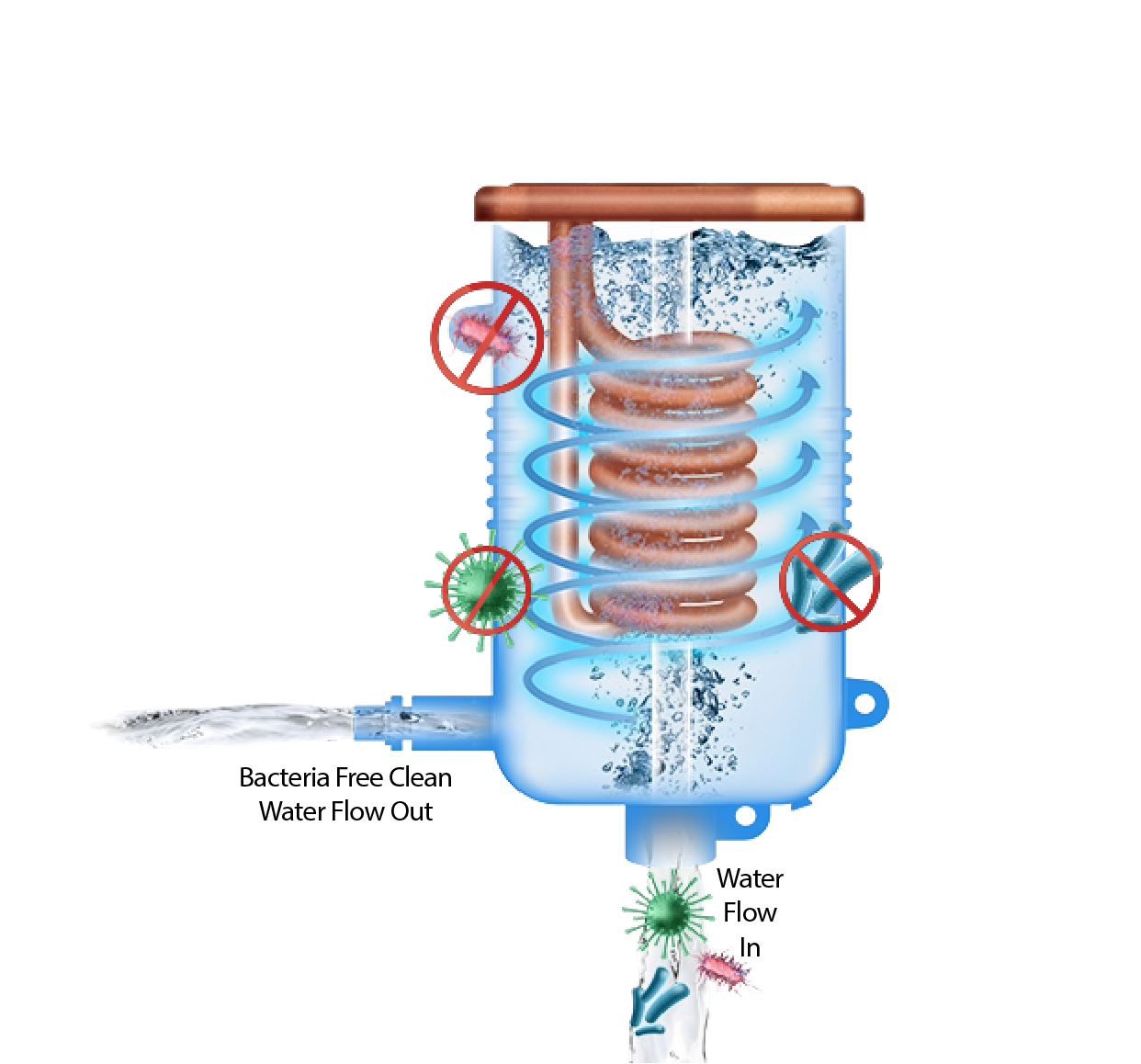

Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
Premium & Long Lasting Colour Finish Double Layer 2K Spray Paint Finish
For that long lasting colour finish that lasts for years to come, our colour models come with double layer 2K Spray paint finish.
(Colour models only)
SAFETY FEATURES
High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard
The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.
Enhanced Protection Against Current Leakage Double Poles EELS | <10mA Standard
Your safety are assured with the industry’s safest Double Poles EELS which is 10mA sensitivity that cuts off current both live and neutral line at high speed with detection of any current leakage above 10mA.
Surge Protector Comply with IEC 61000-4-5 (Level 3)
Protection against power surge which disconnects the power instantly. In the event of a power surge, the surge protector will disconnect the power instantly.
Anti-Scalding Technology
Your safety assured with Anti-Scalding Technology.
Durable Copper Heating Element
Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.
.
Thermal Cut-Out Technology
This safety device will interrupt power supply in the event of overheating and prevent fire hazard.
Nylon Fibre Tank With Swirl Technology
Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.
SFS Technology
The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.
Triple Reinforced & Insulated Hose
5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.
SVF Valve with Built-In Filter
Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.
Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
ACCESSORIES

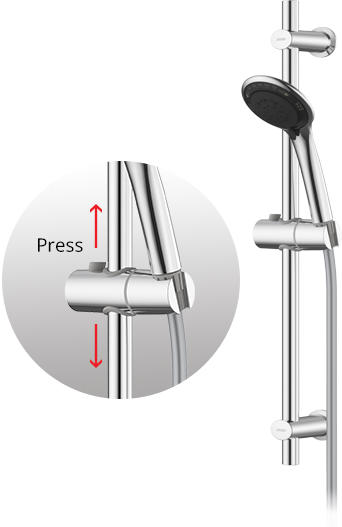

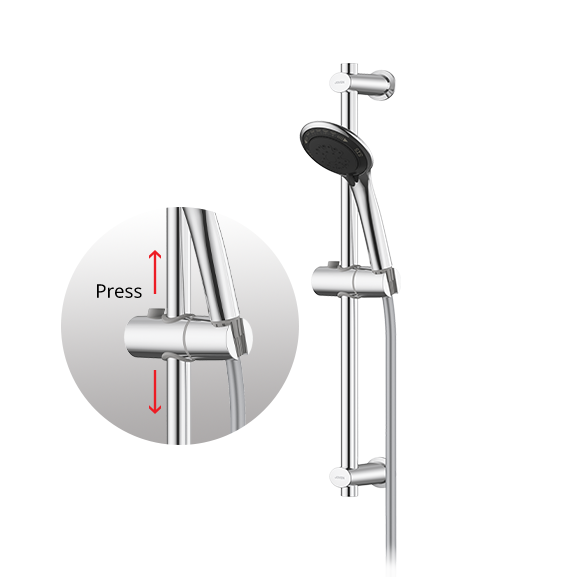

Chrome Slim Slider Bar Set With Triple Reinforced Non-Conductive Hose
Adjust your showerhead to the height you desire for maximum comfort. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.
5 Spray Showerhead
Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Screw and Wall Plug
5 sets to mount unit on the wall
Washer
2 pieces to be placed at inlet and outlet as water tight seal
Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action
TECHNICAL SPECIFICATION
-
Electrical Loading
3.6kw 15.0A 240Va.c. 50Hz -
Min. Water Pressure
10kPa / 1.45psi / 0.1 bar -
Max. Water Pressure
380kPa / 55psi / 3.8 bar -
Min. Water Flow
2 Litres per minute -
Max. Water Flow
8 Litres per minute
-
Water Temp. Control
Stepless Electronic Power Control -
Inlet/Outlet Connection
Ø15mm (1/2” BSP) – Single Point System -

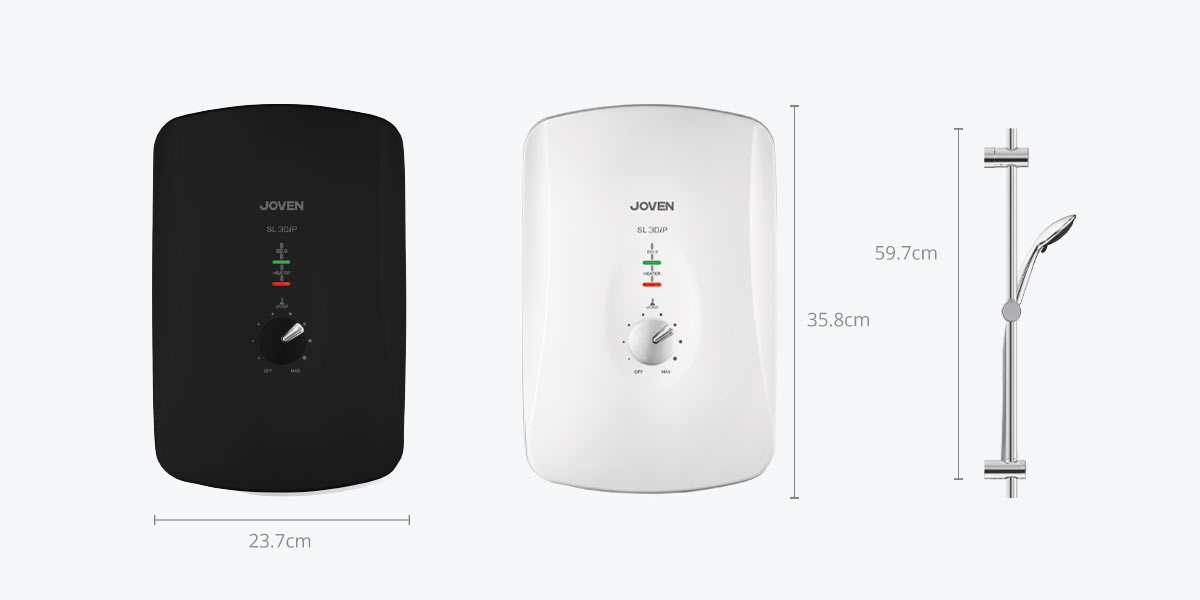

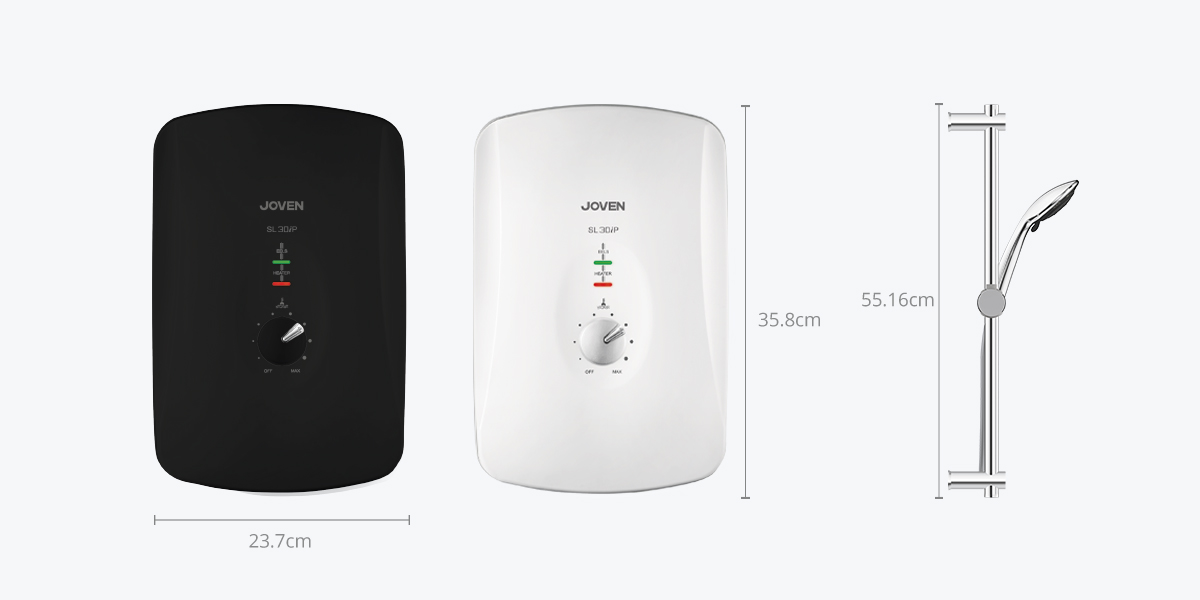

Dimensions
237 x 358 x 70 mm -
Weight
3.5kg
